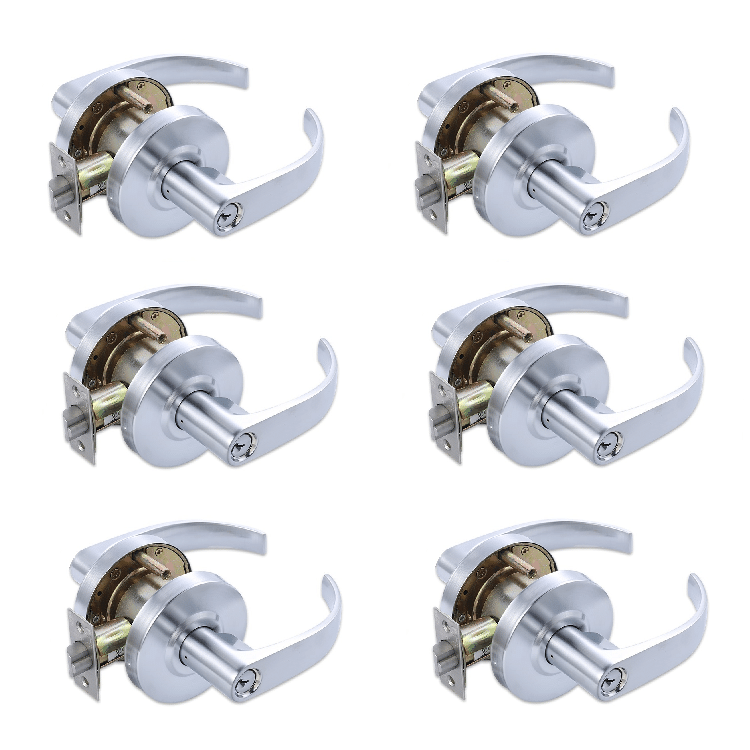

Hermes Hardware Grade 1 Commercial Extra Heavy Duty ,UL Fire Rated 3h (Entry / Keyed Function 6-Pack)


Free Shipping

In stock

- +
SKU: HH1011 Categories: ,
  • Meets ANSI Grade 1 Standards
  • 1.000.000 Cycles
  • Function: Entry / Keyed
  • Finish: Satin Chrome 26D
  • Fixed 2 ¾” backset, includes 2 keys


  • Door Prep: Cross bore 2-1/8″, Edge bore 1″ , Latch face 1-1/8″x2-1/4″.
  • Backset: Fixed 2-3/4″
  • Door Thickness: 1-1/2″–2″ standard.
  • Cylinder: 6-Pin removable core . Schlage “C ” keyway or Kwikset and other options available.
  • Handing: Completely reversible.
  • Face plates: 1-1/8″x2-1/4″square corner standard. Round corner and other options available.
  • Strikes: ASA strike standard. 2-1/4″ full lip square corner and round corner and optional “T” available.
  • Bolt: 1/2″ throw, stainless steel.
  • ANSI/BHMA: A156.2 Grade 1.


  • Freewheeling clutch design free turning handle in the locked position without opening door, to deter breaking of the handle.
  • Concealed screw mounting

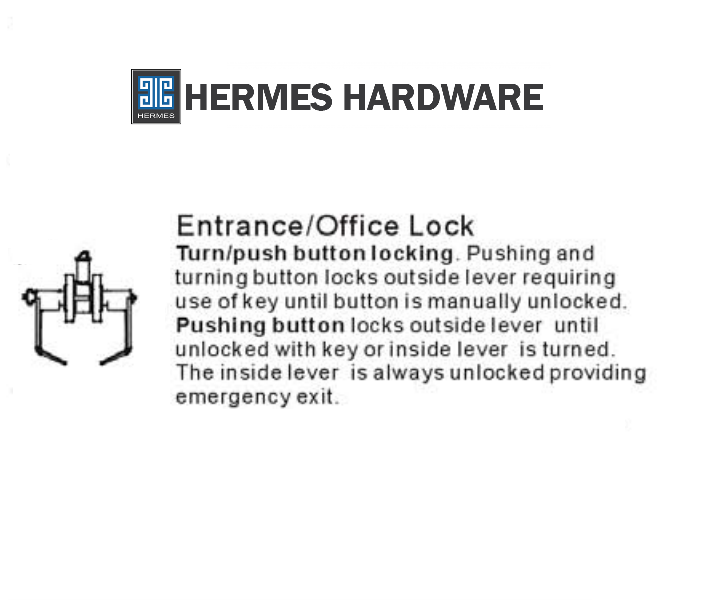

  •  Push in and turn button function
  • Cylindrical body provides great strength and durability. Two sides spindle supporting mechanism eliminates lever wobble.
  •  Coil compression springs provide great strength and durability.

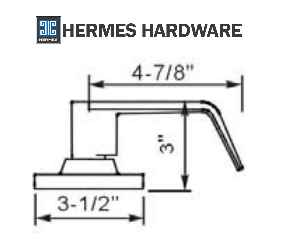

  •  Full length lever handle with 3/8″ return
  •  Anti-sag mechanism with independent lever return springs.
  •  UL 3 Hour Rated 1/2″ Throw deadlatch completely reversible for flat and beveled doors. Stainless steel latch bolt and faceplate.
