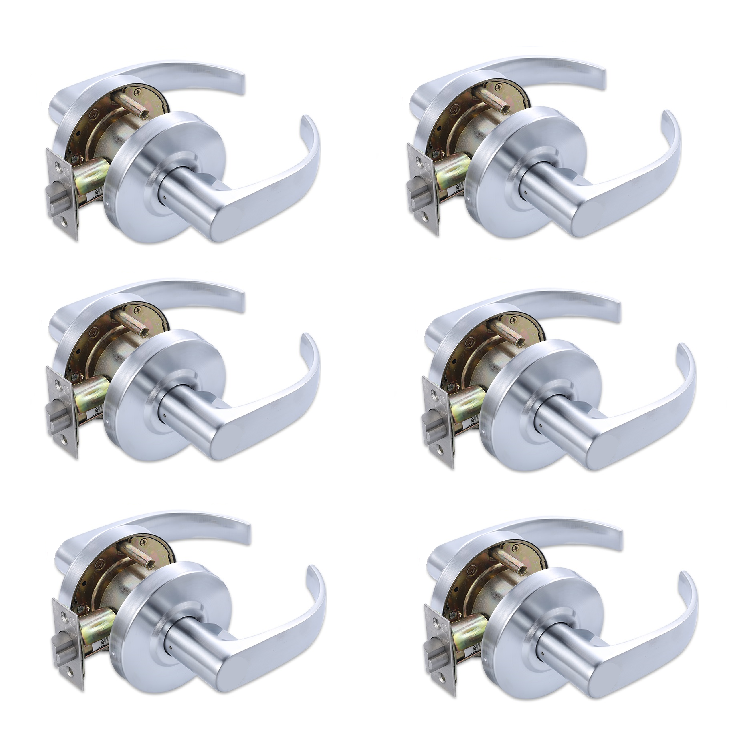

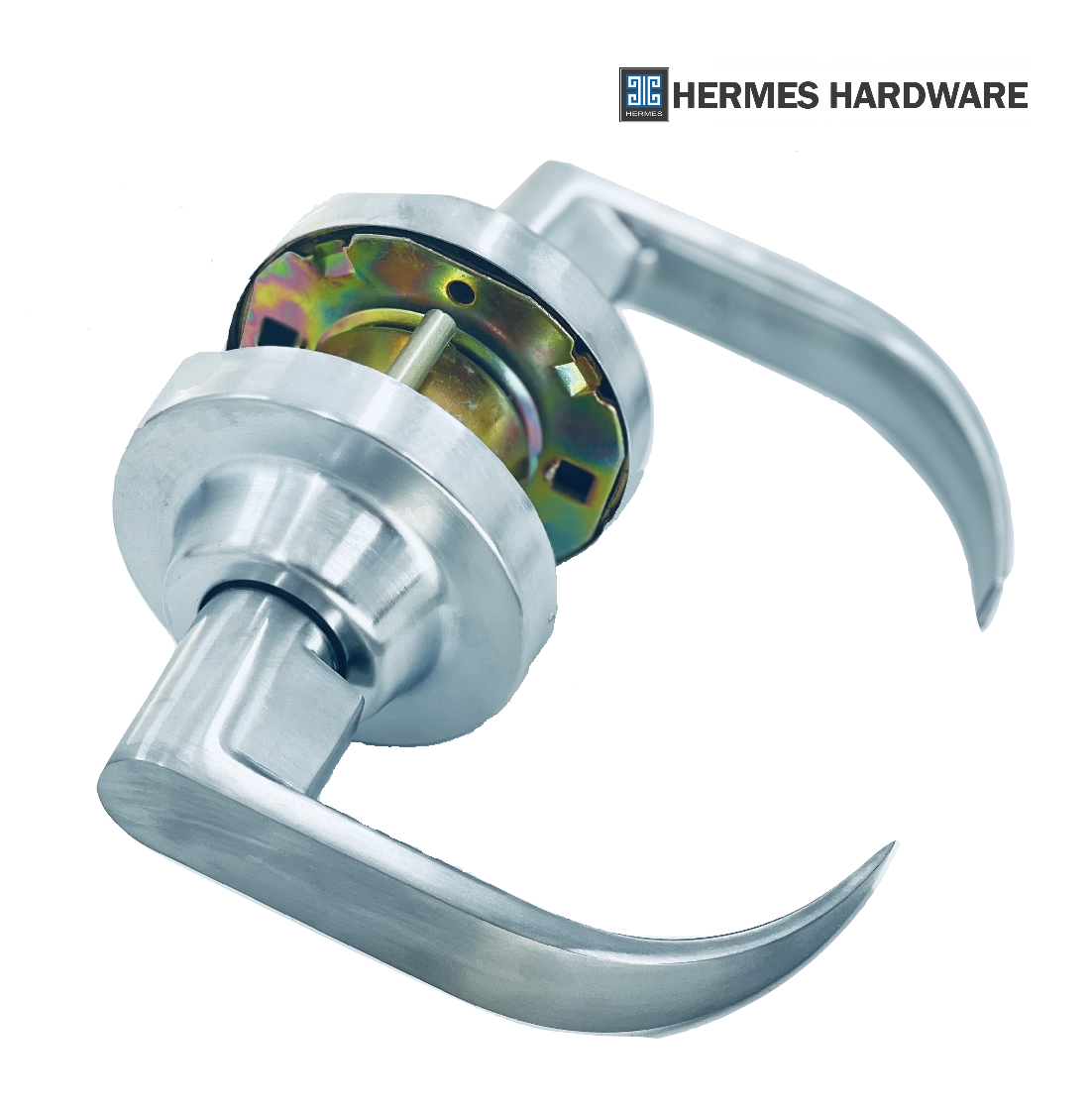

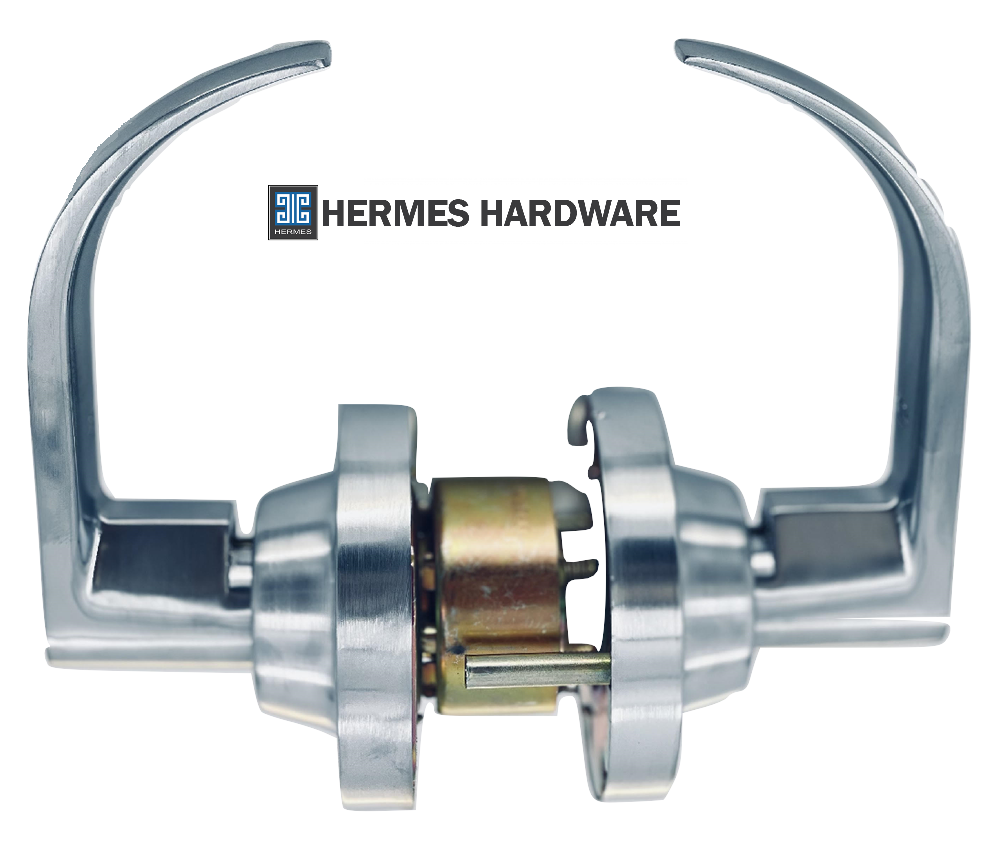

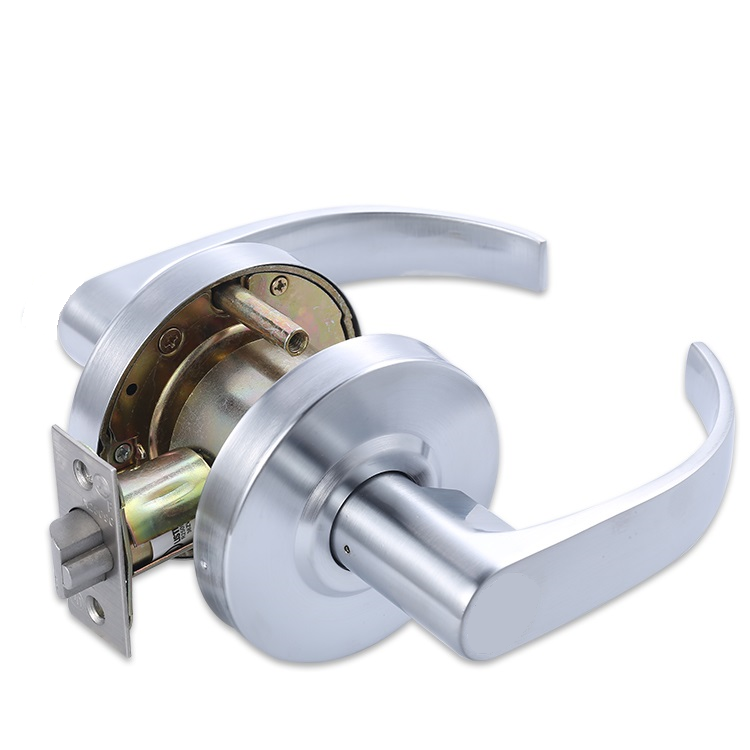

Hermes Hardware Grade 1 Commercial Extra Heavy Duty, UL Fire Rated 3h (Passage / Closet 6-Pack)


Free Shipping

Out of stock

SKU: HH1033 Categories: ,

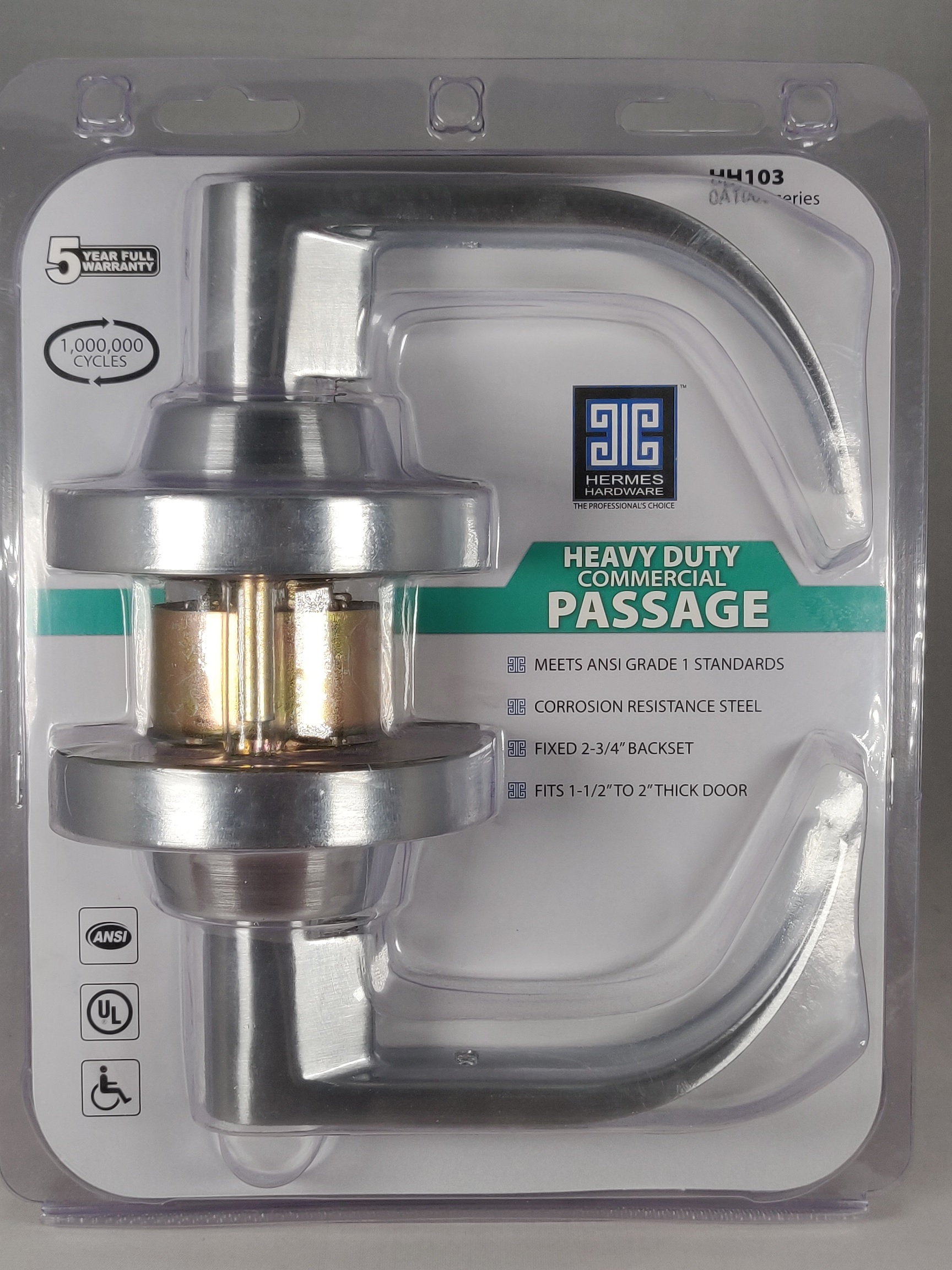

  • Meets ANSI Grade 1 Standards
  • 1.000.000 Cycles

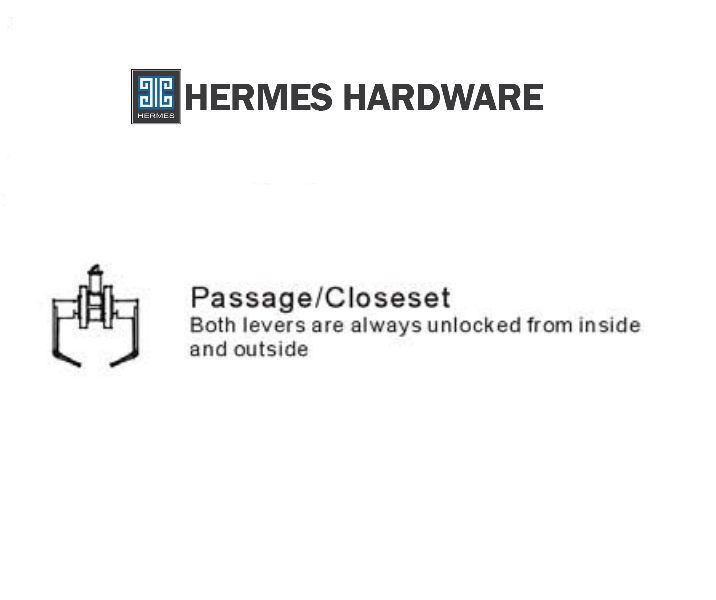

  • Passage / Closet
  • Finish: Satin Chrome 26D
  • Fixed 2 ¾” backset

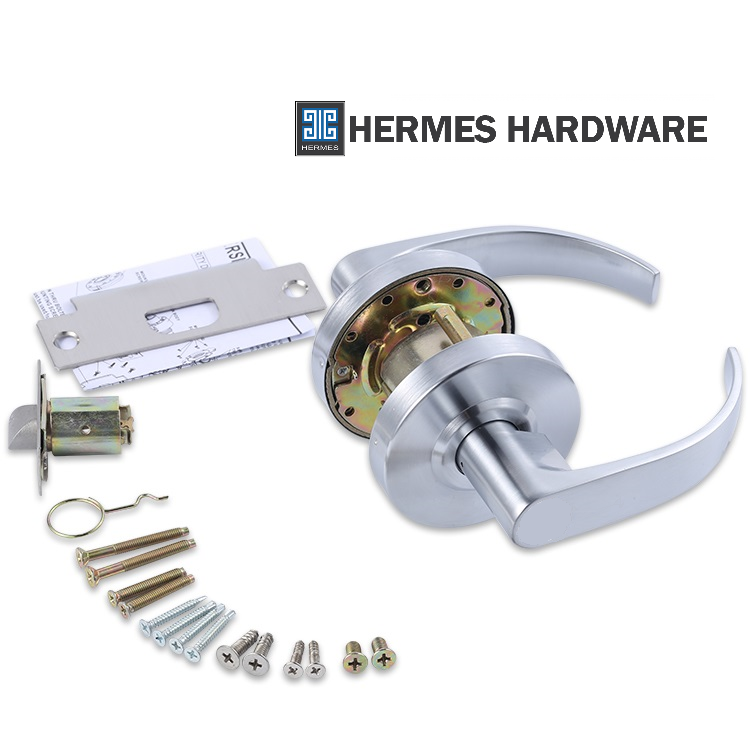

<p>&nbsp;</p><p><strong>Specifications:</strong></p><ul><li><strong>Door Prep</strong>: Cross bore 2-1/8″, Edge bore 1″ , Latch face 1-1/8″x2-1/4″.</li><li><strong>Backset</strong>: Fixed 2-3/4″.&nbsp;</li><li><strong>Door Thickness</strong>: 1-1/2″–2″ standard.</li><li><strong>Handing</strong>: Completely reversible.<br>&nbsp;</li><li><strong>Face plates</strong>: 1-1/8″ x 2-1/4″square corner .</li><li><strong>Strikes</strong>: Packaged with 4-7/8″ ASA ANSI Strike.</li><li><strong>Bolt</strong>: 1/2″ throw, stainless steel.</li><li><strong>ANSI/BHMA</strong> :Certified A156.2 – Grade 1 (exceeds 1,000,000 cycles)&nbsp;</li></ul><p>&nbsp;</p><ul><li>Freewheeling clutch design free turning handle in the locked position without opening door, to deter breaking of the handle.</li><li>Concealed screw mounting</li><li>Cylindrical body provides great strength and durability. Two sides spindle supporting mechanism eliminates lever wobble.</li><li>&nbsp;Coil compression springs provide great strength and durability.</li><li>&nbsp;Full length lever handle with 3/8″ return</li><li>&nbsp;Anti-sag mechanism with independent lever return springs.</li><li>&nbsp;UL 3 Hour Rated 1/2″ Throw deadlatch completely reversible for flat and beveled doors. Stainless steel latch bolt and faceplate.</li></ul>
