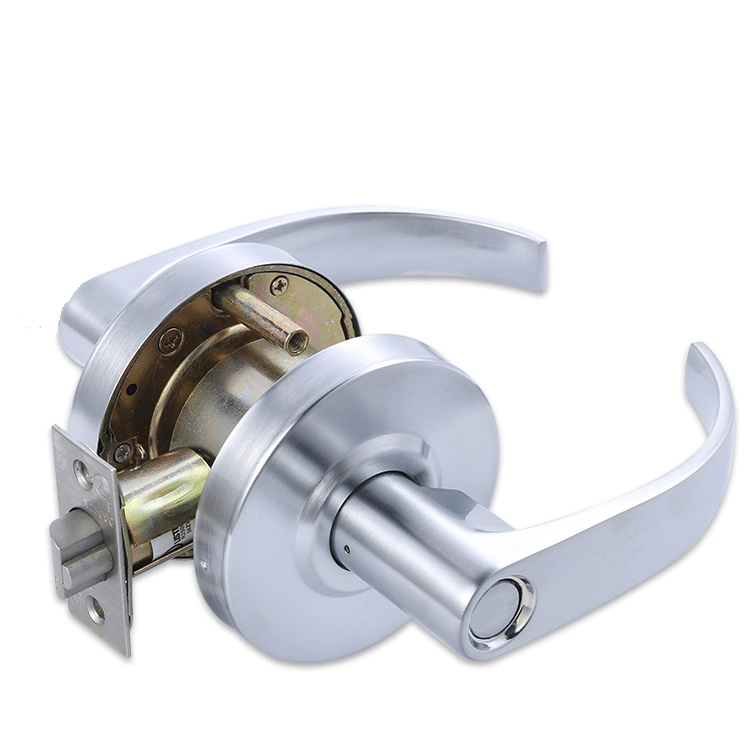

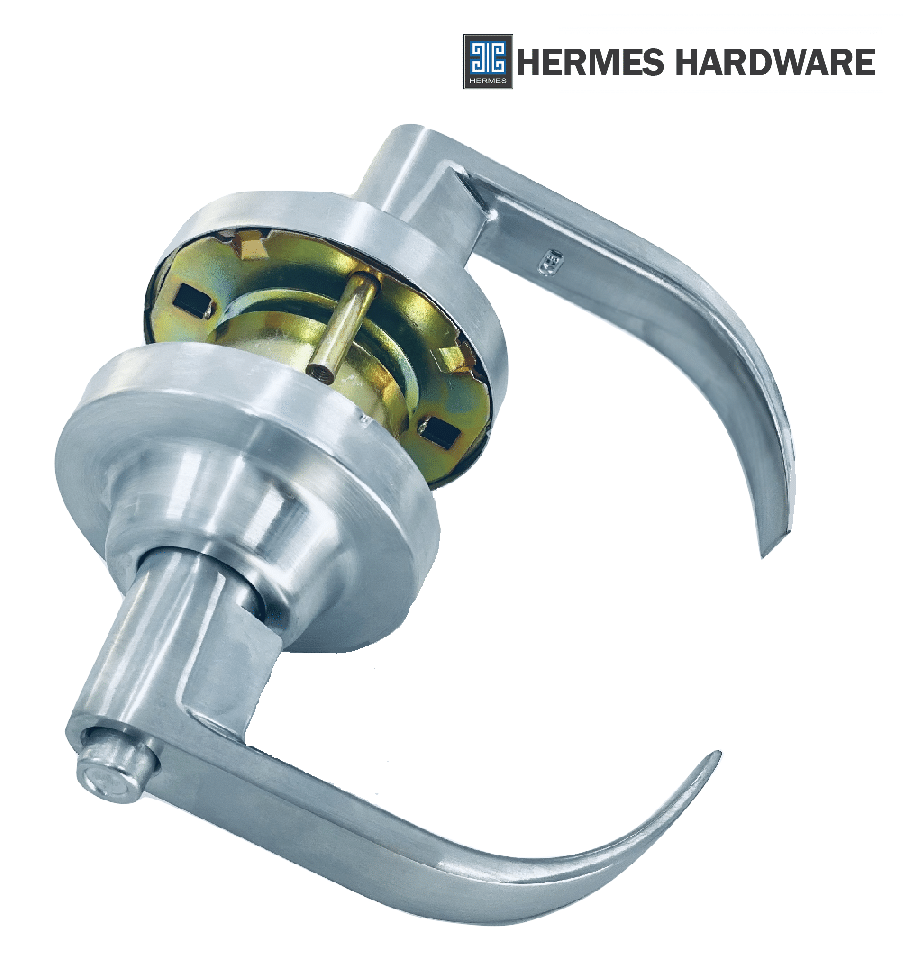

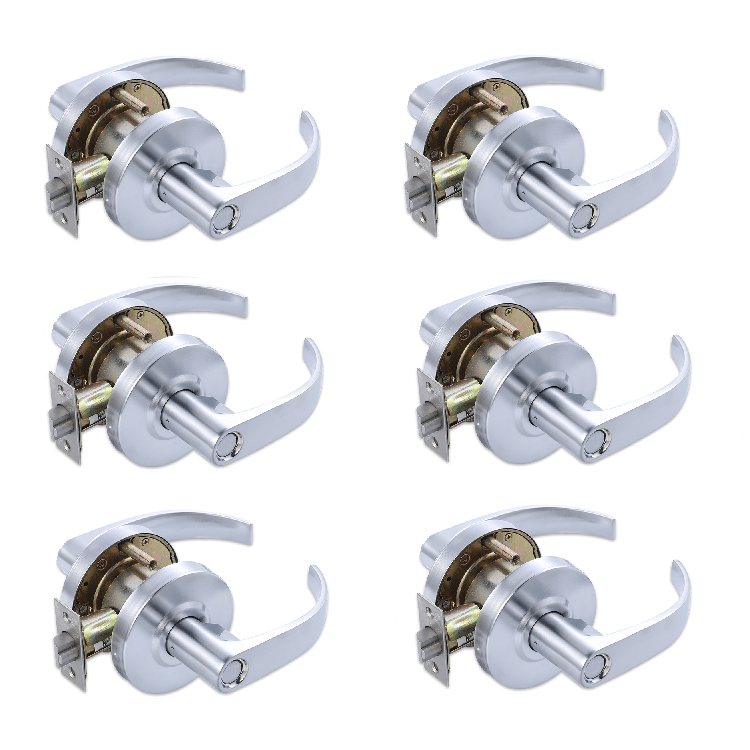

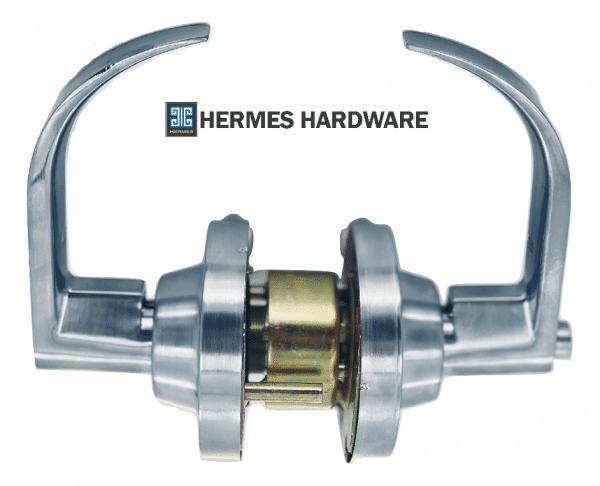

Hermes Hardware Grade 1 Commercial Extra Heavy Duty,UL Fire Rated 3h (Privacy/ Bathroom 6 -Pack)UL Fire Rated 3h

$507.50

Free Shipping

In stock

- +
SKU: HH1022 Categories: ,

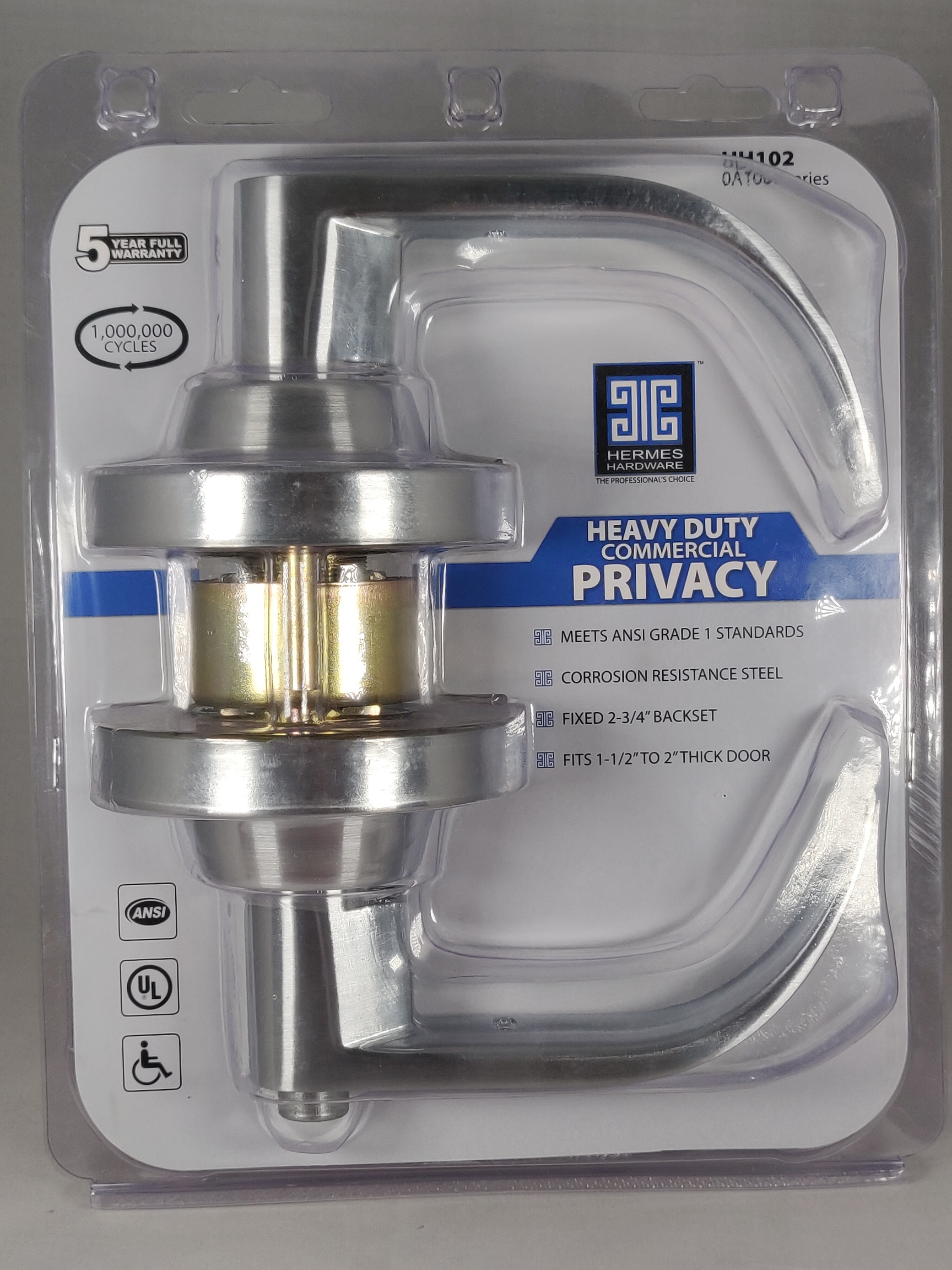

  • Meets ANSI Grade 1 Standards
  • 1.000.000 Cycles

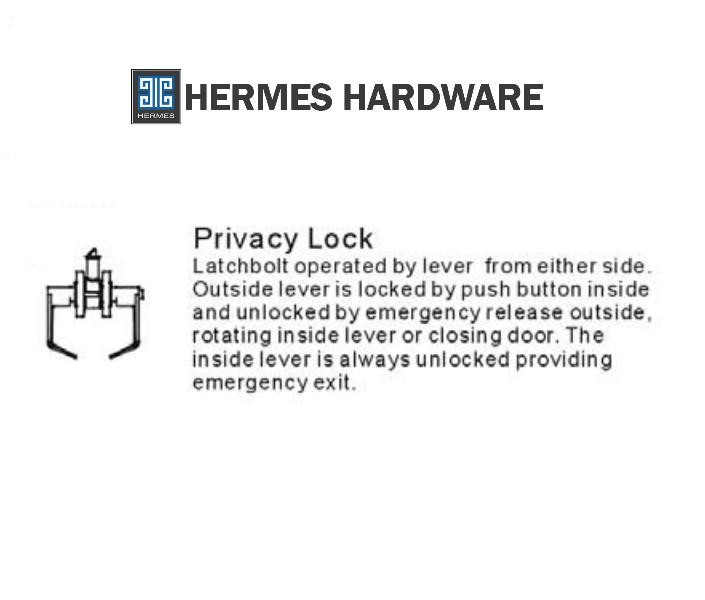

  • Function: Privacy / Bathroom
  • Finish: Satin Chrome 26D
  • Fixed 2 ¾” backset

Specifications:

  • Door Prep: Cross bore 2-1/8″, Edge bore 1″ , Latch face 1-1/8″x2-1/4″.
  • Backset: Fixed 2-3/4″.
  • Door Thickness: 1-1/2″–2″ standard.
  • Handing: Completely reversible.
  • Face plates: 1-1/8″x2-1/4″square corner .

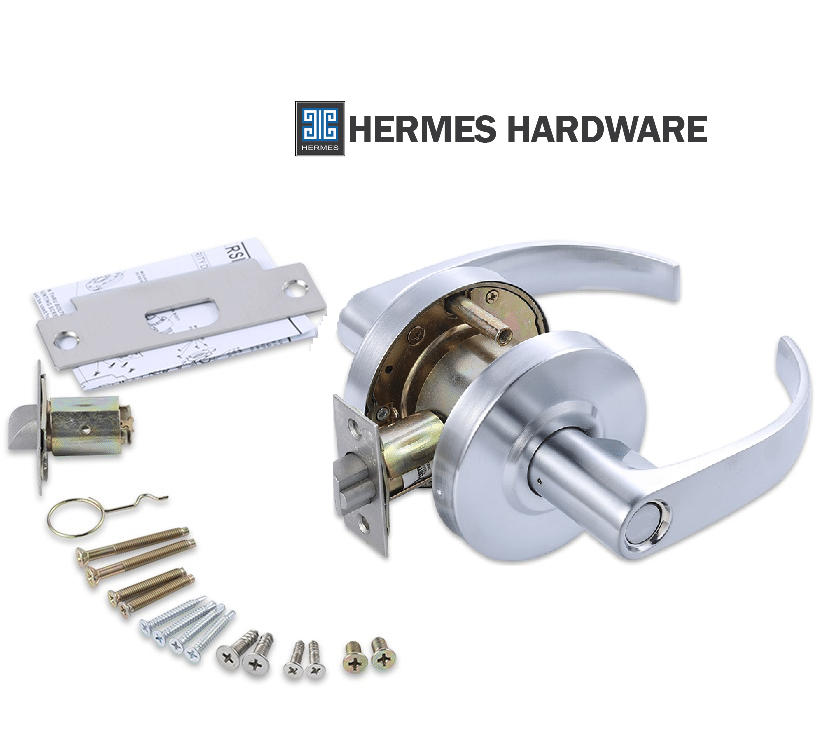

  • Strikes: Packaged with 4-7/8″ ASA ANSI Strike.
  • Bolt: 1/2″ throw, stainless steel.
  • ANSI/BHMA :Certified A156.2 – Grade 1 (exceeds 1,000,000 cycles)



  • Freewheeling clutch design free turning handle in the locked position without opening door, to deter breaking of the handle.
  • Concealed screw mounting
  • Push in and turn button function
  • Cylindrical body provides great strength and durability. Two sides spindle supporting mechanism eliminates lever wobble.
  •  Coil compression springs provide great strength and durability.

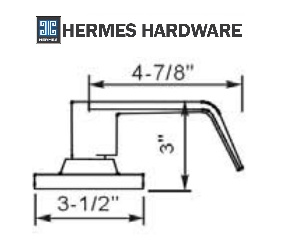

  •  Full length lever handle with 3/8″ return
  •  Anti-sag mechanism with independent lever return springs.
  •  UL 3 Hour Rated 1/2″ Throw deadlatch completely reversible for flat and beveled doors. Stainless steel latch bolt and faceplate.
